The CI Elite series is made in Canada and has all the technological advantages of our CI PRO series.
- Recommended amplifier power: 15-150 W.
- Frequency band: 75 Hz - 18 kHz.
- Sensitivity: 92 dB.
- Installation depth: 9.2cm.
The Custom Installer's Performance-Oriented Solution
The CI Elite series is Made in Canada and has all the technological advantages of our CI PRO Series, but we didn't stop there. It's packed full of features that make a difference, and it doesn't get much sweeter than this when looking for the ultimate sound performance.
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn't just sound good "on paper" but truly sounds incredible in the real world.
Aluminum Magnesium
(AL-MAG™) Cones
Similar to the goals we had in mind when developing the AL-MAC™ tweeter, AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.
Advanced
Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulated CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Oversized, 1.5” High-Power Handling Voice Coil
motor structure dramatically increases maximum output level and reduces power compression.
Patented† Active Ridge Technology (ART™) surrounds
made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
Advanced Features for a Solid and Secure Installation
FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

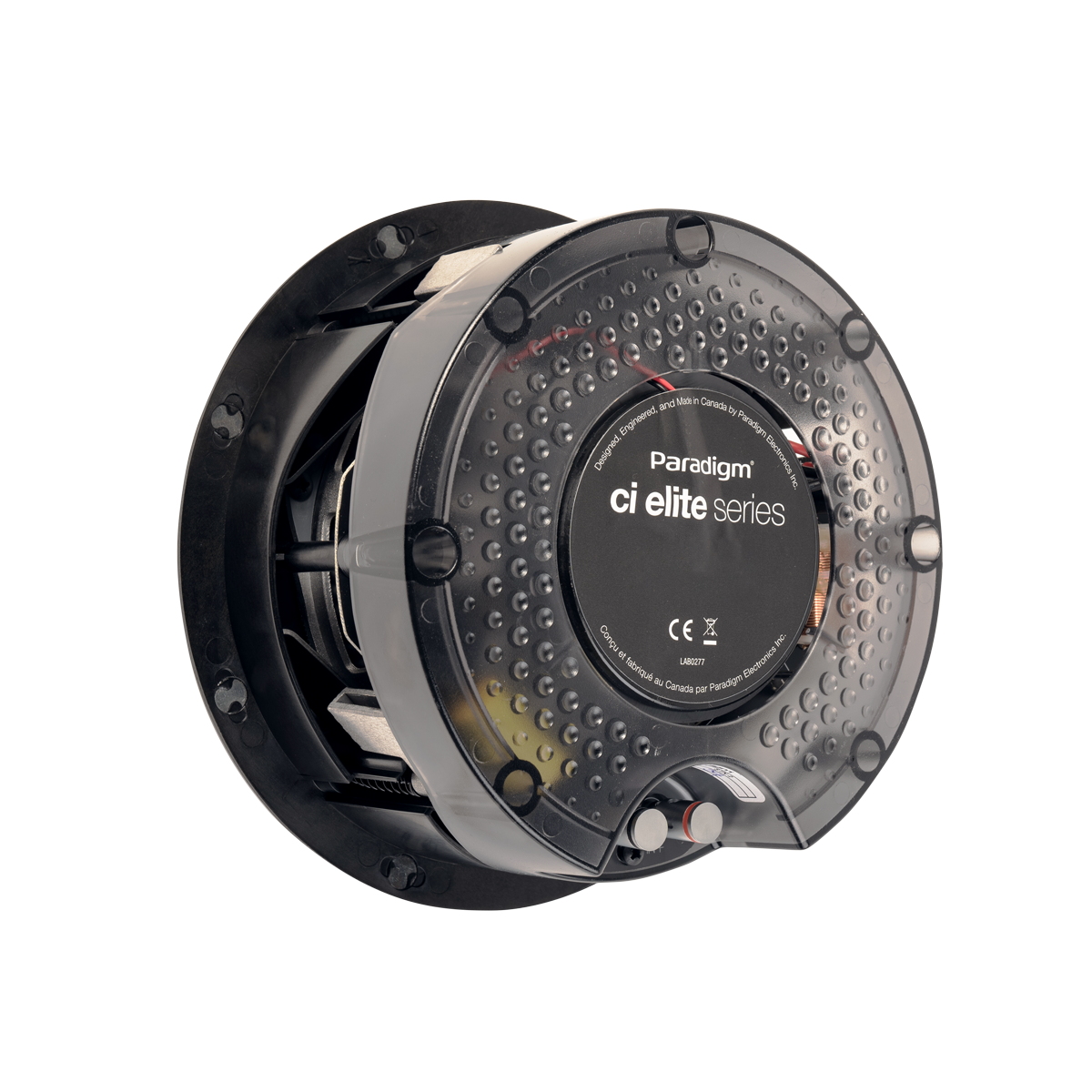

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lay speakers down during the installation process without tipping. (CI Pro/Elite Models Only)
Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)
Pocketed screw holes help to hold the drill steady, making installation a snap.
Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.
Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

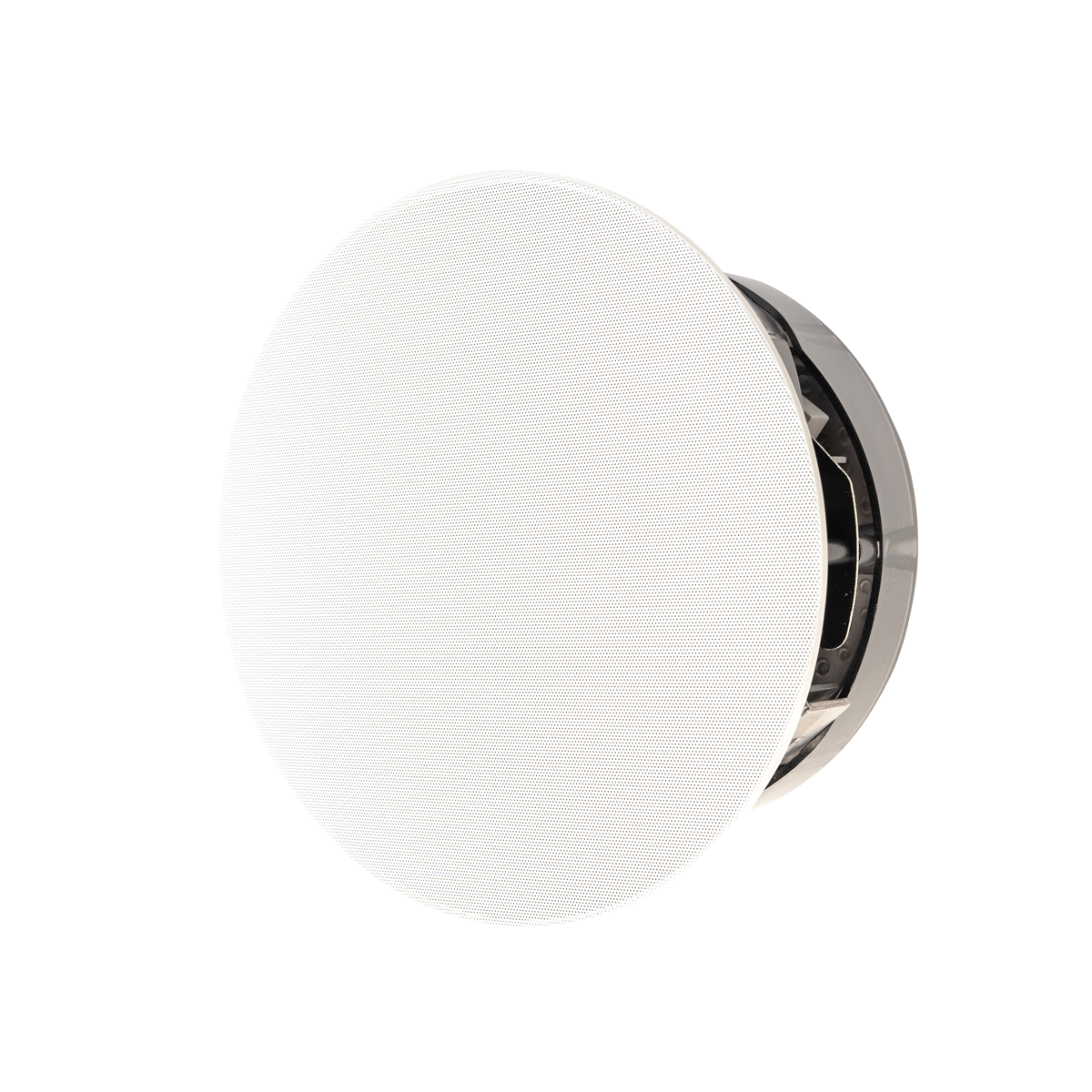

Bezel-Free Micro-Perf Grilles offer a clean aesthetic from room-to-room.
Magnetically attached grills: neodymium magnets hold grilles firmly in place.
Partnered with the NRC
Paradigm is partnered with Canada's world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
SPECIFICATIONS
| DESIGN | 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle |
| CROSSOVER | 3rd-order electro-acoustic at 2.0 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB from 75 Hz - 22 kHz |
| HIGH FREQUENCY DRIVER | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| MID/BASS FREQUENCY DRIVER | 6.5” (16.5cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminum Baskets |
| LOW FREQUENCY EXTENSION | 39 Hz |
| SENSITIVITY ROOM / ANECHOIC | 92dB / 88dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 75 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15-150 W |
| MAXIMUM INPUT POWER | 100W |
| IMPEDANCE | Compatible with 8 ohms |
| WEIGHT | 5.7 lbs (2.6 kg) |
| FINISHES | White, paintable grille, black speaker |
| CUT-OUT DIMENSIONS | 7-3/4” (19.7cm) dia. |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) |
3-5/8” (9.2cm) |
| DIMENSIONS HXWXD (INCLUDES GRILLE). | 8-7/8” (diameter) x 4-1/4” (depth) (22.6cm x 10.7cm) |
