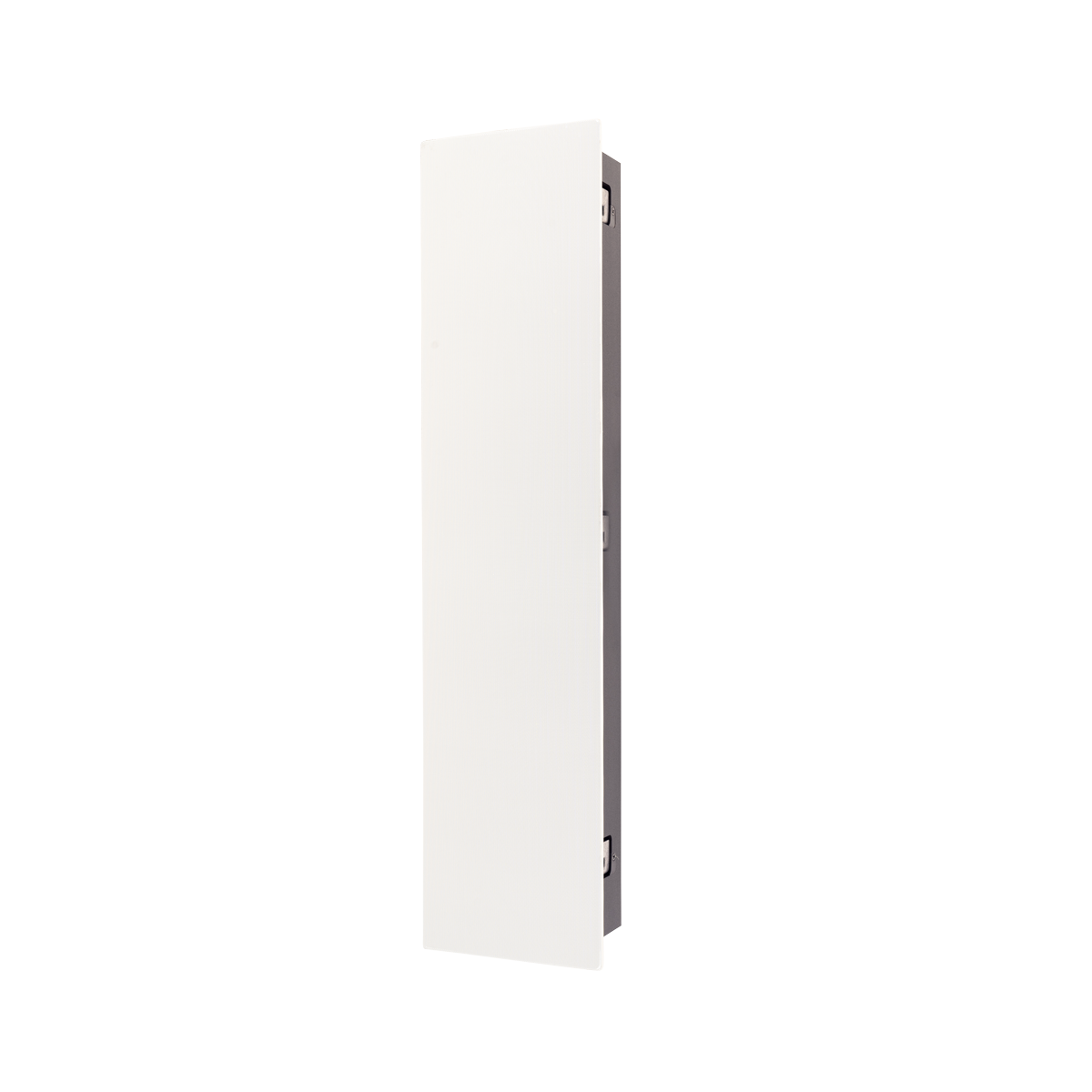

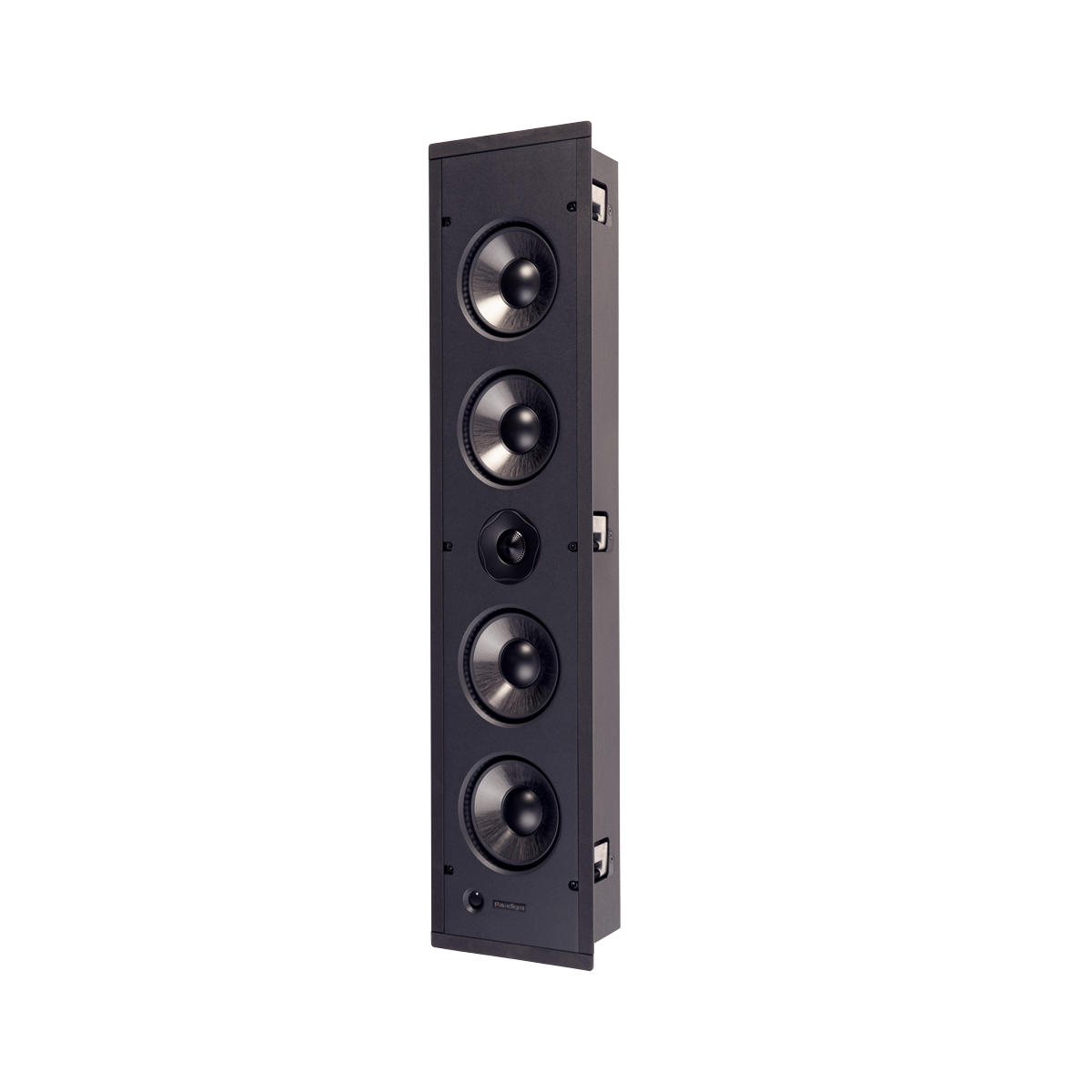

Paradigm CI Pro P3 LCR v2, wall mounted speaker (installation depth: 9.8 cm.)

€2,415.00 EUR

Paradigm CI Pro P3 LCR v2, wall mounted speaker (installation depth: 9.8 cm.) is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

Made in Canada, the CI PRO series speakers take it to the next level thanks to patented technology, improved components and Paradigm's exceptional sound quality.

  • Recommended amplifier power: 15-120W.
  • Sensitivity: 93 dB.
  • Frequency band: 86 Hz - 19 kHz .
  • Cutout dimensions: 78.7cm x 16.8cm .
  • Minimum installation depth: 9.8cm.
  • Paintable surface.


Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn't just sound good "on paper" but truly sounds incredible in the real world.



CARBON-X™ Cones

Paradigm's exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced
Shock-Mount™ System

(baffle/basket isolation) Like the CI Elite Series, we've added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.



Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Reduced Edge Diffraction (RED™) Technology

significantly reduces the adverse effects of diffraction while improving frequency response.


Advanced Features for a Solid and Secure Installation


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.


Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound 'spillage' to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)


Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.


Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.


Bezel-Free Micro-Perf Grilles offer a clean aesthetic from room-to-room.


Magnetically attached grills: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada's world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.



SPECIFICATIONS

DESIGN 3-driver, dual passive radiators, 2-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System
CROSSOVER 2nd-order electro-acoustic at 2.2 kHz
FREQUENCY RESPONSE ON-AXIS ±3 dB from 86 Hz - 22 kHz
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER Two 5.5” (13.9cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminum Baskets
LOW FREQUENCY EXTENSION 66 Hz
SENSITIVITY ROOM / ANECHOIC 93dB / 90dB
FREQUENCY RESPONSE 30° OFF-AXIS ±3 dB from 86 Hz - 19 kHz
SUITABLE AMPLIFIER POWER RANGE 15-120 W
MAXIMUM INPUT POWER 90W
IMPEDANCE Compatible with 8 ohms
WEIGHT 19.0 lbs (6.8 kg)
FINISHES White, paintable grille, black speaker
PASSIVE RADIATORS Two 5.5” (13.9cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminum Baskets
CUT-OUT DIMENSIONS 31” x 6-5/8” (78.7cm x 16.8cm)
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 		3-7/8” (9.8cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 32” x 7-5/8” x 4-1/8” (81.3cm x 19.4cm x 10.5cm)

INSTRUCTIONS

User Manual (EN).
