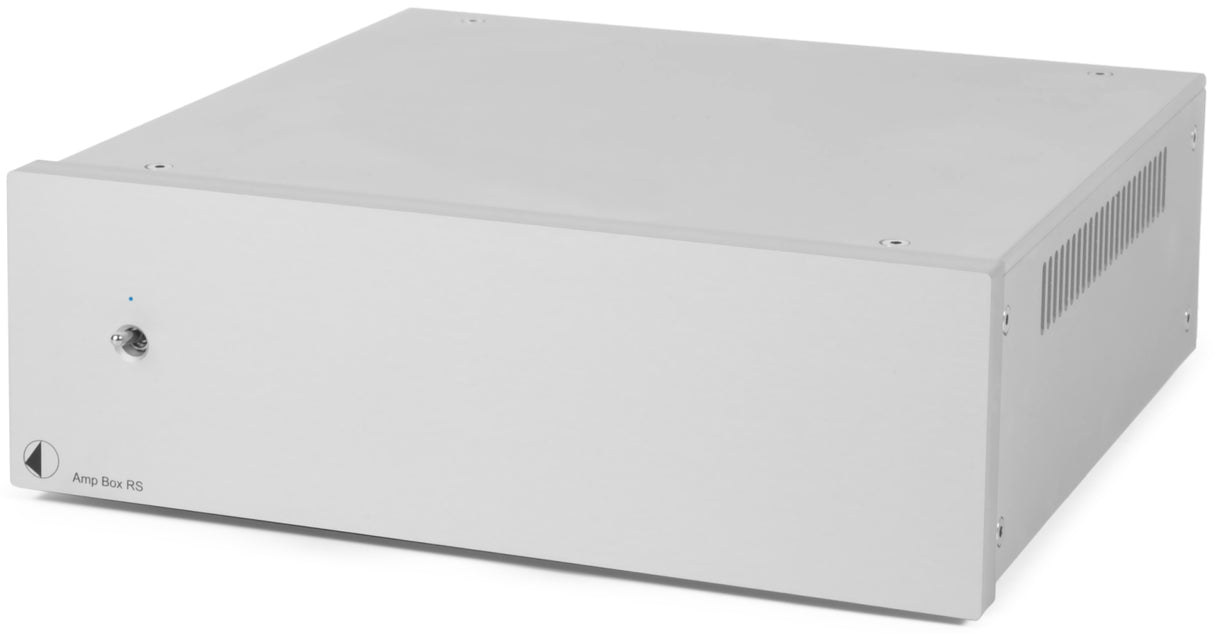

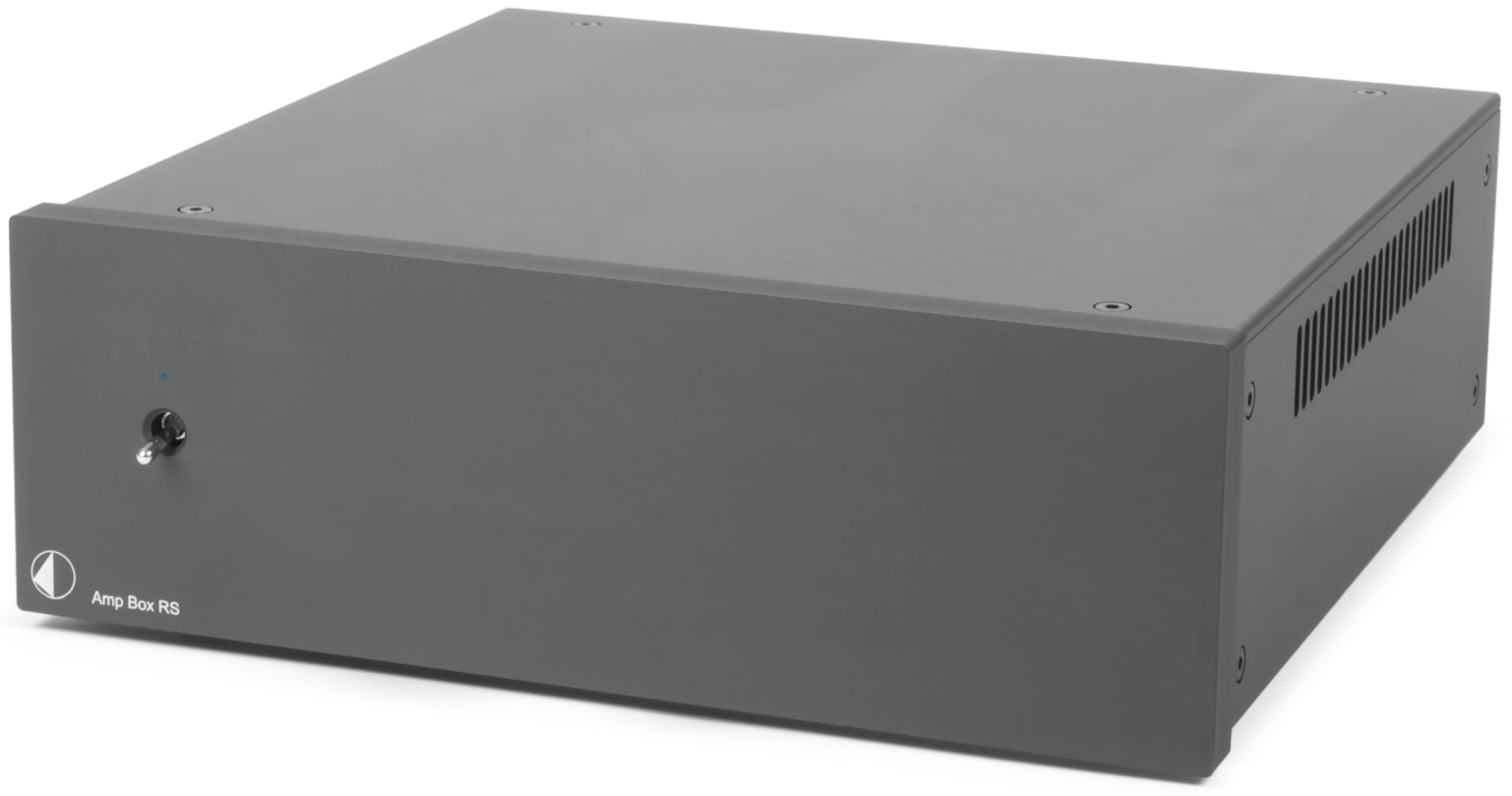

Pro-Ject Amp Box RS, Stereo audio amplifier (various colors)

€999.00 EUR

Pro-Ject Amp Box RS, Stereo audio amplifier (various colors) - Black is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The Amp Box RS features three-dimensional sound, perfect micro-dynamics and the highest resolution combined with high output power and the ability to use 2-ohm audio.

  • Power 2 x 110 / 180 W @ 8 Ohm / 4 Ohm.
  • Frequency range 10 Hz - 50 kHz (- 0.8 dB / - 3 dB).
  • Signal to noise ratio >-100 dB (IEC -A).
  • THD < 0.05% @ 100W.

Four specific characteristics make this a true high-end amplifier:

1. Fully balanced double mono design

2. Highly efficient energy saving PWM modules

3. Tube buffer input stage

4. Upgrade option PS Box RS for more power and further improved sound quality

Amp Box RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with high power output and 2 ohm capability and is also the perfect solution for Bi- or Tri-Amping applications. Amp Box RS is the perfect companion for Pre Box RS and will give pure sound experience, that the real audiophile is looking for. Because of its heat emission Amp Box RS luxury casing, which is available in silver or black finish, should not be combined with Design Box Acryl.

The addition of linear power supply Power Box RS Amp adds even more depth and lets you hear all microscopic fine detail.

Features

  • Fully balanced double mono design (Pulse Wave Modulation)
  • Highly efficient conversion from mains to output power (92%)
  • 2 ohm drive capability
  • Tube buffer stage with reference quality
  • SMD construction for shortest signal paths
  • Line level preamp inputs (RCA & XLR)
  • Top-quality speaker terminals
  • Metal casing protects against vibration and interference
  • DC power supply (< 1 Watt standby power)
  • Available in silver or black

    SPECIFICATIONS

    Tube assembly 2 x ECC88 (6922)
    Power output 2 x 110/180W @ 8 Ohm/4 Ohm
    Frequency response 10 Hz - 50 kHz (- 0.8 dB/ - 3 dB)
    Signal to noise ratio >-100dB (IEC-A)
    THD < 0.05% @ 100W
    Input RCA & XLR-sockets
    Input sensitivity 1.35V
    Input Impedance 22 kOhm
    Damping factor 400 @ 8 ohms; 200 @ 4 ohms
    Speaker terminals 4 mm Ø Banana, spade or bare wire
    External power supply 48 V/2.5 A DC; 100 - 240 V, 50/60 Hz
    Standby consumption < 1 Watt
    Dimensions W x H x D 206 x 72 x 220 mm with sockets
    Weight 2120 g without power supply

    INSTRUCTIONS

    User Manual (EN).
