Rotel

Rotel RA-6000 integrated amplifier (various colors)

€4,938.15 EUR

Rotel RA-6000 integrated amplifier (various colors) - Black is backordered and will ship as soon as it is back in stock.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000 arba atvykite į mūsų saloną Armatūrininkų g. 1, Kaunas.

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

The Diamond series RA-6000 integrated amplifier marks Rotel's 60th anniversary and is a truly noteworthy product for every audiophile.

  • Power: 350W.
  • Class AB amplifier.
  • Supports MQA and MQA Studio.
  • Texas Instruments premium 32-bit/384kHz DAC.
  • Wireless aptX™ HD and AAC Bluetooth support.
  • Resistance: 4Ω.

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel's 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

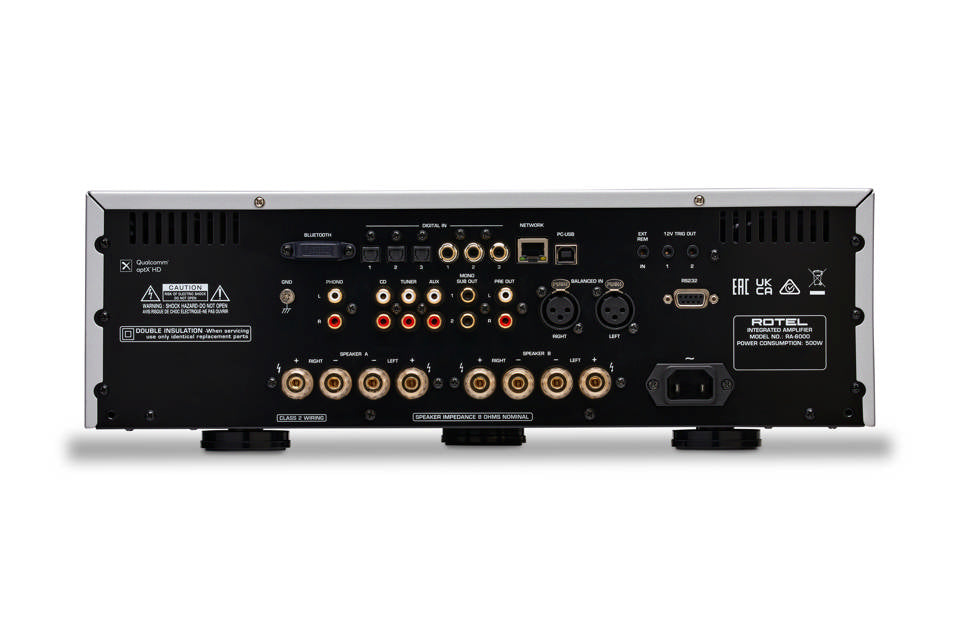

Ethernet, RS232, 12V trigger and external remote input simplify integration with control systems.

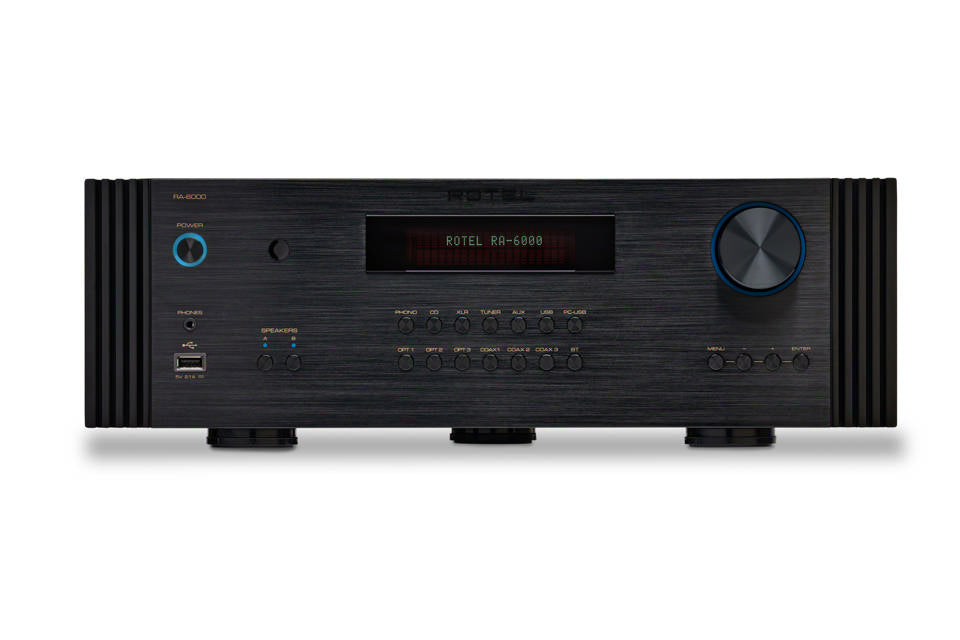

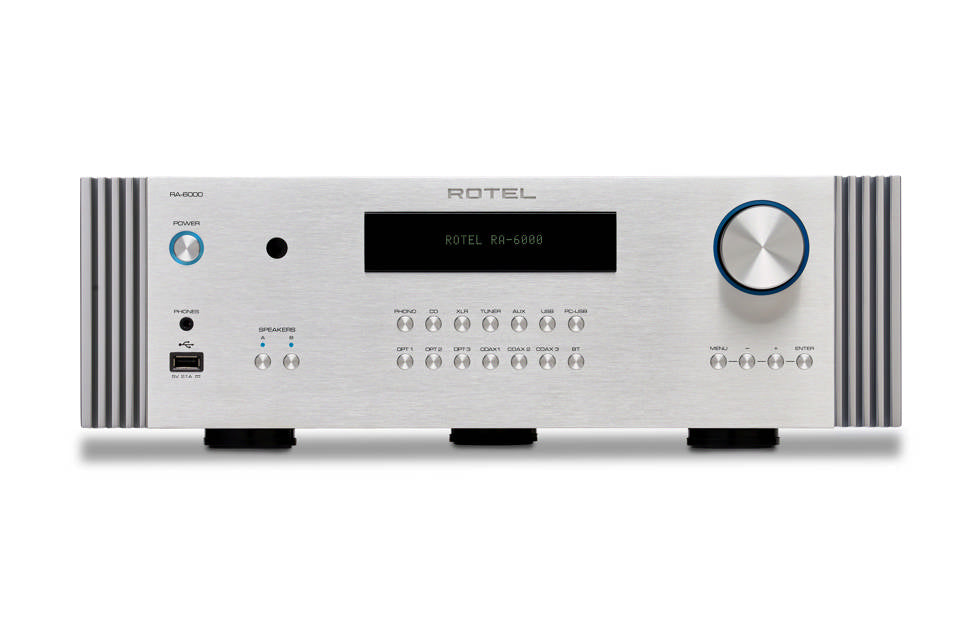

The RA-6000 is available in both black and silver colors.

SPECIFICATIONS

DIMENSIONS (W × H × D) 431 × 144 × 425mm
17" × 5.7" × 16" FRONT PANEL HEIGHT 3U / 132.6mm (5.25") POWER REQUIREMENTS 230V, 50Hz POWER CONSUMPTION 500W STANDBY POWER CONSUMPTION <0.5W NET WEIGHT 18.81kg (41.47lbs.) BTU (4 ohms, 1/8th power) 1239 BTU/h

Components

MAXIMUM POWER OUTPUT 350W/Ch (4Ω) CONTINUOUS POWER OUTPUT 200W/Ch (8Ω) TOTAL HARMONIC DISTORTION (THD) <0.0075% FREQUENCY RESPONSE
 Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2dB Phono Input: 20Hz - 20kHz, ±0.5dB S/N RATIO (IHF "A" Weighted)
 Line Level Inputs: 103dB Digital Inputs: 102dB Phono Input: 80dB INTERMODULATION DISTORTION (60Hz:7kHz, 4:1) <0.03% DAMPING FACTOR 600 INPUT SENSITIVITY Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Digital Inputs: 0 dBfs Phono Input (MM): 5.2mV INPUT IMPEDANCE Line Level Inputs (RCA): 5.6kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ INPUT OVERLOAD Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 4.5V Phono Input: 52mV PREOUT LEVEL 1.9V OUTPUT IMPEDANCE 100Ω COAX/OPTICAL DIGITAL INPUT SIGNALS LPCM (Up to 24-bit/192kHz) PC-USB USB Audio Class 2.0 (up to 32-bit/384kHz)* *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz) Roon Tested

INSTRUCTIONS

User Manual (EN).
