RVC CAM-E-DOBLO NTSC CMOS 150°, rear camera

€145.00 EUR

RVC CAM-E-DOBLO NTSC CMOS 150°, rear camera is backordered and will ship as soon as it is back in stock.

▪️ Do you have any questions about this product? We can advise you by phone +370 683 90000 or come to our salon at Armatūrinininkų g. 1, Kaunas .

Home delivery from €4.99

Venipak courier within 1-2 working days.

Collect in store €0

Armaturininkai str. 1, Kaunas
Working hours: IV 9:00-18:00

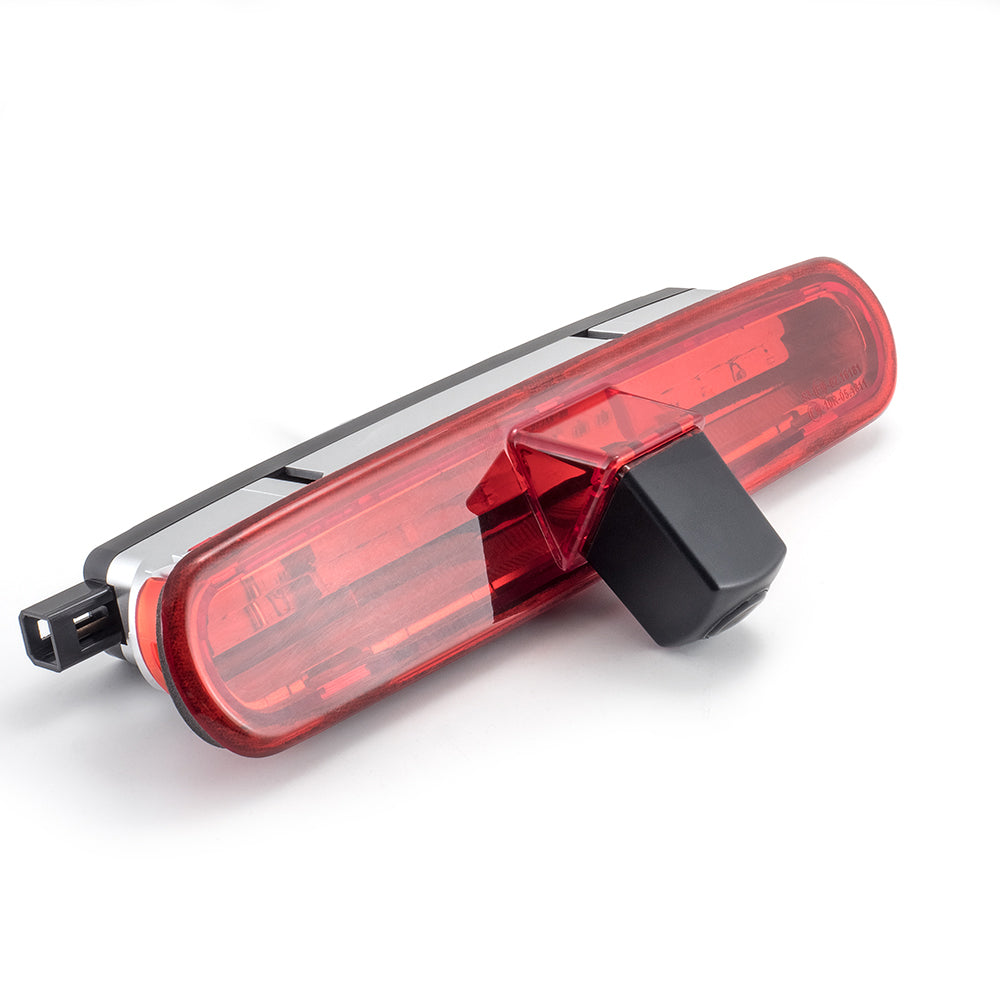

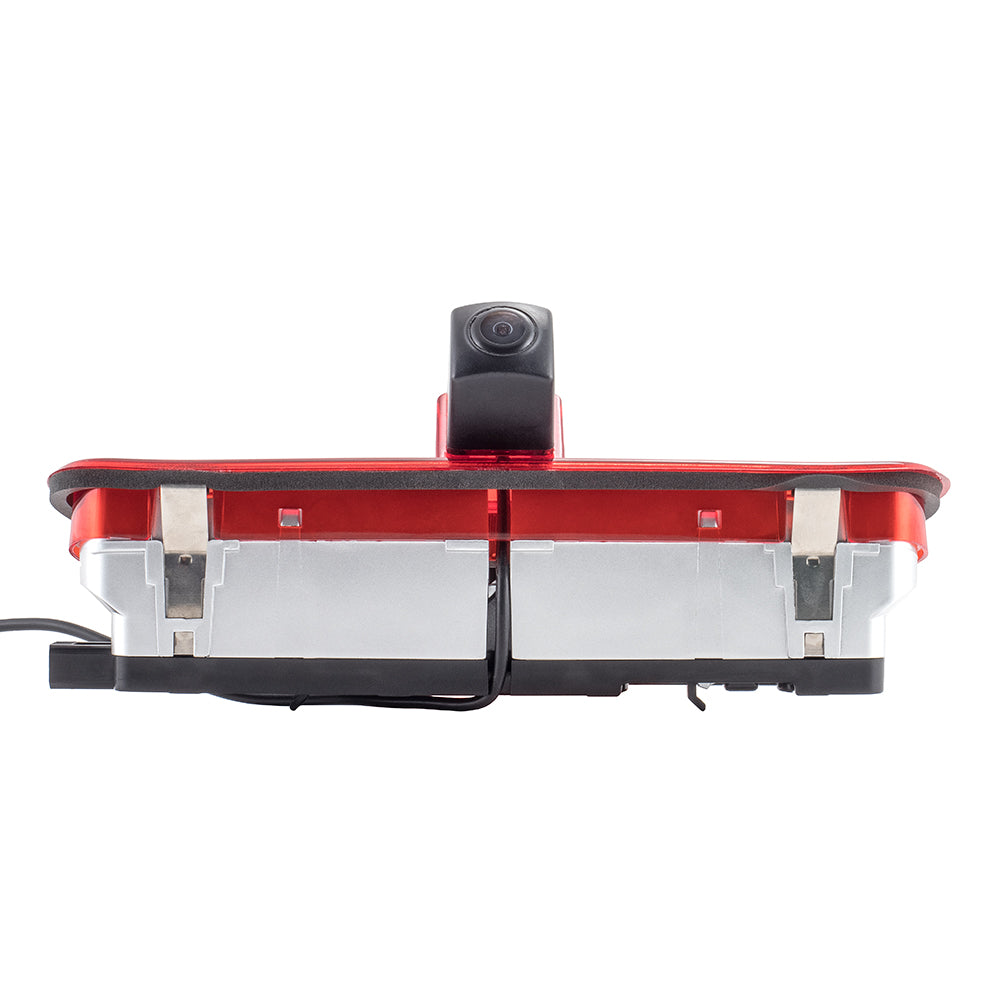

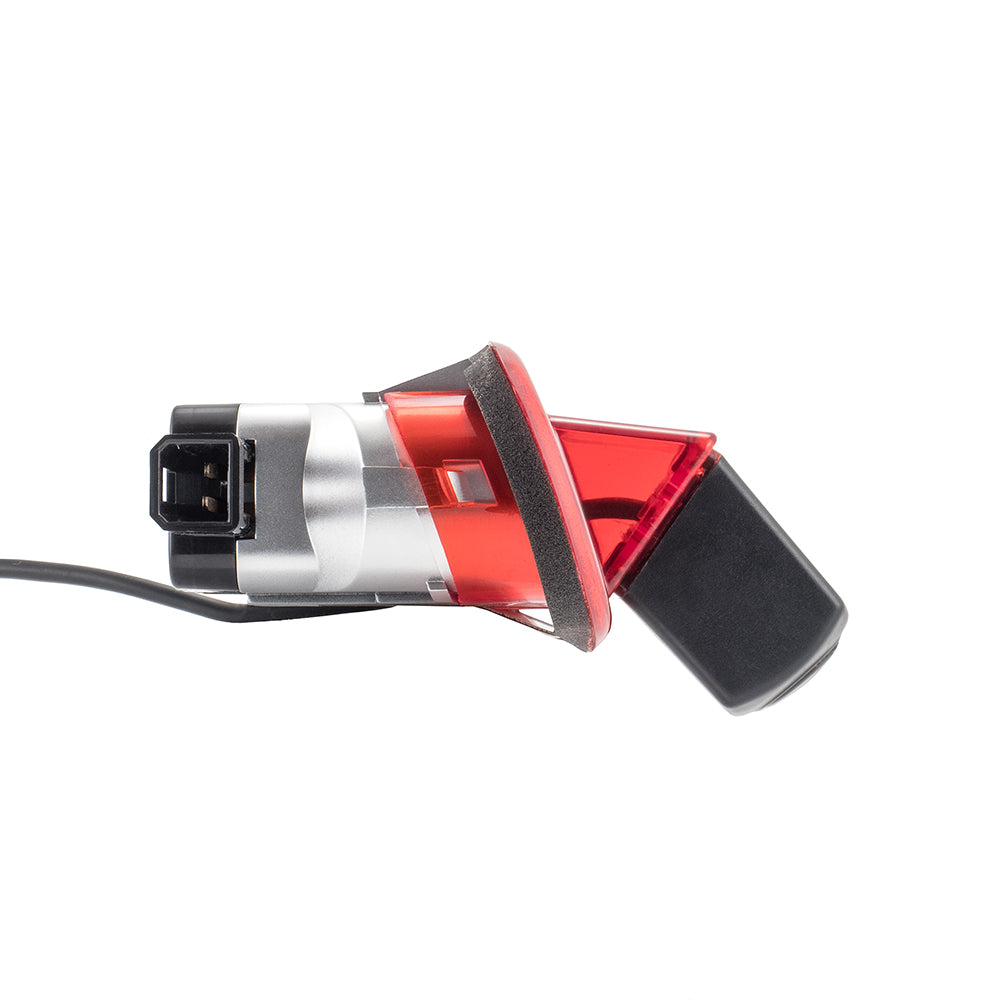

The rear camera is built into the brake light. Suitable for Doblo 2 (2010-2019) and Opel Combo D (2011-2018).

  • Sensor: 1/4inch CMOS NTSC
  • Resistance standard IP 68.
  • Resolution: 720 x 480 px .
  • Cable length: 10 m.


Vehicle-specific exchange brake light illumination-glass with rear-view camera. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.


TECHNICAL DATA

  • 1/4 inch CMOS NTSC sensor
  • Resolution 720 x 480 pixel (580 TV lines)
  • 0.1 LUX min illumination
  • Angle diagonal 150°, horizontal 120°
  • Mirrored image (fixed)
  • Parking guide lines, optional switchable
  • Protection class IP68
  • Black camera
  • 0.8m camera cable with 4pin-KO system-female connector (diameter 5.9mm)
  • 10m extension cable (4pin-KO)
  • System-connector cable 4pin-KO with RCA connector



Compatibility

Mature Model
Fiat Doblo 2 manufacture years from 2010 to 2019
Opel Combo D manufacture years from 2011 to 2018




NOTICE: Please make sure to check if the size of the camera fits the vehicle!



Specifications

Operating voltage 12V DC (9~16V)
Current consumption max. 150mA
Operating temperature -20°C to +70°C
